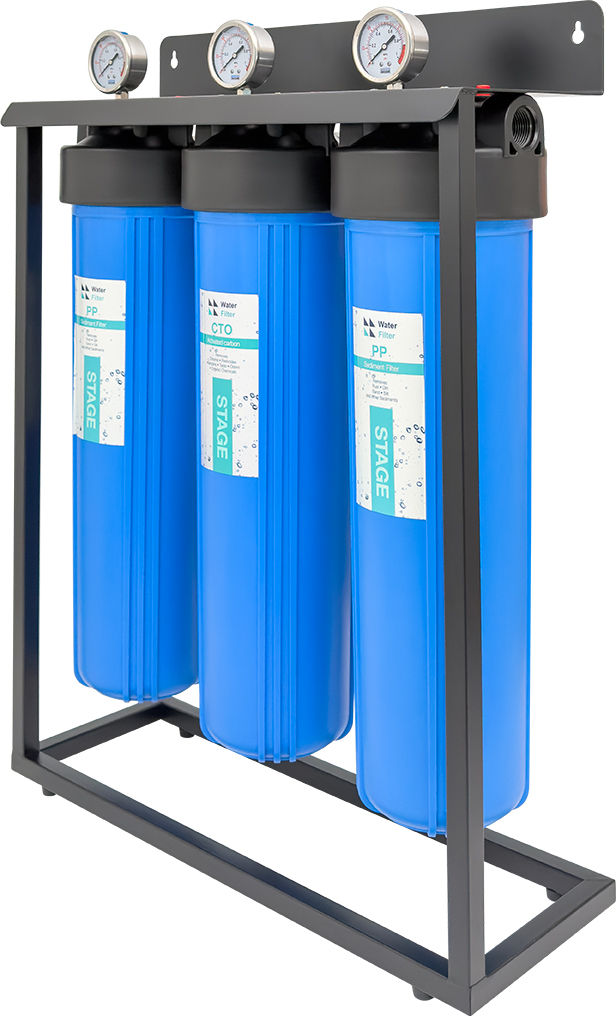

3 Stage 20"Big Blue with Pressure gauges
Standing Black steel frame & bracket
Maximum Pressure: 6bar
Maximum Flow Rate: 2500lph
Port Size: 25mm
BG-WF09
1. SEDIMENT FILTRATION
This is a 50 micron sediment filter that will remove sediment, silt, rust and loose particles to ensure clear water.
2. ACTIVATED CARBON FILTRATION
This is an activated carbon filter that will remove chlorine, volatile organic compounds (VOC’s) and bad tastes and odours from the water.
3 POLISHING FILTER
This is a 5 micron sediment filter for finer filtration. It is also used as a polishing filter before the UV light. This is to ensure that the UV light receives clear water which in turn will ensure effective penetration of the UV light through the water.
4 STERILIZATION FILTER
This is a stainless steel UV light used to sterilize the water. UV rays can destroy 99.99% of harmful micro organisms without adding chemicals or changing your water’s taste or odor. Ultraviolet light (UV) is a natural part of sunlight and is widely accepted as a reliable, efficient and environmentally friendly solution for water disinfection. The UV lamp utilizes the application of a particularly efficient UV radiator with a 254nm wave length which will kill organisms and wipe out their ability to survive and reproduce. The water is exposed to UV radiation in a specially designed chamber that provides intimate contact of the water with the UV light source. Bacteria and other living organisms absorb the energy, which destroys or inactivates their DNA, thus preventing the bacteria from reproducing. Similarly, chemicals and organic compounds also absorb the energy and they are broken down into smaller and more harmless molecules.
